Introduction to MapKit in iPhone OS 3.0

December 21st, 2009 Posted by: - posted under:Tutorials

Introduction

Hello everyone. Welcome to another screencast. Today we will be looking into the MapKit, a new API’s made available by Apple in the iPhone OS 3.0 release. The MapKit allows simple access to the map seen in the maps application. Using GoogleMaps as its engine the map kit allows for a developer to make their own custom map interface to fit their own application. Today we will be reviewing the MapView as well as the Map Annotations that can be used to highlight points of interest in a map. We will create our own custom map app, along with custom annotations. Let’s dive in.

Skill Level Intermediate

This tutorial is one for people familiar with general Objective C development and introductory experience to the iPhone SDK. Knowledge of general Interface Builder usage and DataSource and Delegate methods are required.

Screencast

I film myself coding out the entire sample project for each post. I personally think going through the Screencast is the best way to learn. But feel free to look through the slides and text if that suites you better.

Introduction to Map Kit on iPhone OS 3.0 from Collin Ruffenach on Vimeo.

Source

iCodeBlogMap Source

Tutorial

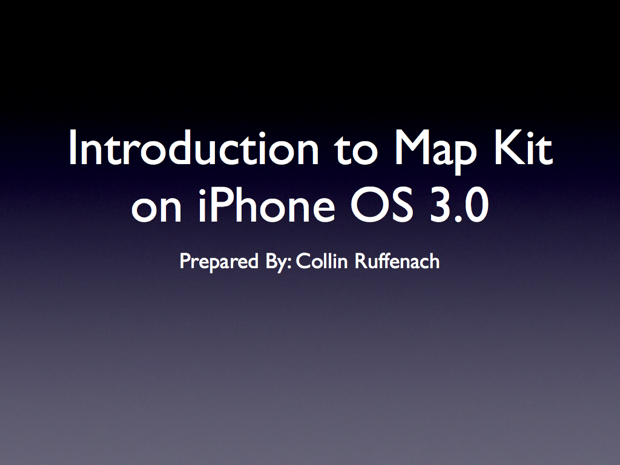

Introduction to MapKit on iPhone OS 3.001

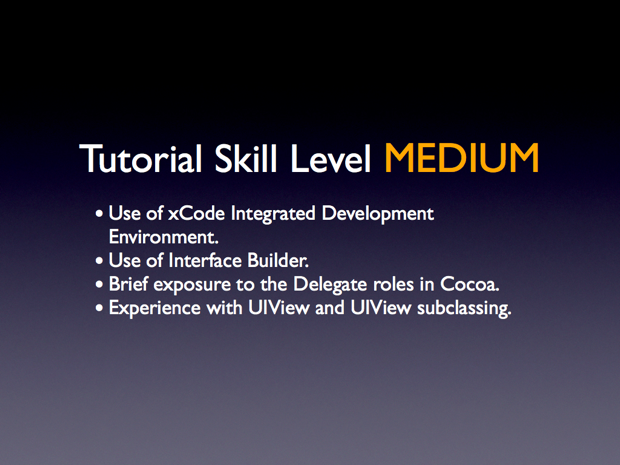

Introduction to MapKit on iPhone OS 3.002

Introduction to MapKit on iPhone OS 3.003

Introduction to MapKit on iPhone OS 3.004

Introduction to MapKit on iPhone OS 3.005

Introduction to MapKit on iPhone OS 3.006

Introduction to MapKit on iPhone OS 3.007

Introduction to MapKit on iPhone OS 3.008

Introduction to MapKit on iPhone OS 3.009

Introduction to MapKit on iPhone OS 3.010

Introduction to MapKit on iPhone OS 3.011

Introduction to MapKit on iPhone OS 3.012

Introduction to MapKit on iPhone OS 3.013

Introduction to MapKit on iPhone OS 3.014

Introduction to MapKit on iPhone OS 3.015

Introduction to MapKit on iPhone OS 3.016

Introduction to MapKit on iPhone OS 3.017

Introduction to MapKit on iPhone OS 3.018

Introduction to MapKit on iPhone OS 3.019

Introduction to MapKit on iPhone OS 3.020

Introduction to MapKit on iPhone OS 3.021

Introduction to MapKit on iPhone OS 3.022

iCodeBlogMapViewController.h

#import "iCodeBlogAnnotation.h"
#import "iCodeBlogAnnotationView.h"

@interface iCodeMapViewController : UIViewController
{
	IBOutlet UITableView *tableview;
	IBOutlet MKMapView *mapView;
	IBOutlet UIImageView *shadowImage;
}

@property (nonatomic, retain) IBOutlet UITableView *tableview;
@property (nonatomic, retain) IBOutlet MKMapView *mapView;
@property (nonatomic, retain) IBOutlet UIImageView *shadowImage;

-(void)loadOurAnnotations;

@end

Introduction to MapKit on iPhone OS 3.023

iCodeBlogAnnoation.h

typedef enum {
	iCodeBlogAnnotationTypeApple = 0,
	iCodeBlogAnnotationTypeEDU = 1,
	iCodeBlogAnnotationTypeTaco = 2
} iCodeMapAnnotationType;

@interface iCodeBlogAnnotation : NSObject
{
	CLLocationCoordinate2D coordinate;
	NSString *title;
	NSString *subtitle;
	iCodeMapAnnotationType annotationType;
}

@property (nonatomic) CLLocationCoordinate2D coordinate;
@property (nonatomic, retain) NSString *title;
@property (nonatomic, retain) NSString *subtitle;
@property (nonatomic) iCodeMapAnnotationType annotationType;

@end

Introduction to MapKit on iPhone OS 3.024

Introduction to MapKit on iPhone OS 3.025

Introduction to MapKit on iPhone OS 3.026

iCodeBlogAnnoation.m

@implementation iCodeBlogAnnotation

@synthesize coordinate;
@synthesize title;
@synthesize subtitle;
@synthesize annotationType;

-init
{
	return self;
}

-initWithCoordinate:(CLLocationCoordinate2D)inCoord
{
	coordinate = inCoord;
	return self;
}

@end

Introduction to MapKit on iPhone OS 3.027

iCodeBlogAnnoationView.h

@interface iCodeBlogAnnotationView : MKAnnotationView
{
	UIImageView *imageView;
}

@property (nonatomic, retain) UIImageView *imageView;

@end

Introduction to MapKit on iPhone OS 3.028

Introduction to MapKit on iPhone OS 3.029

Introduction to MapKit on iPhone OS 3.030

Images to Use

AppleMarker

SchoolMarker

TacosMarker



iCodeBlogAnnoationView.m

#import "iCodeBlogAnnotationView.h"

@implementation iCodeBlogAnnotationView

@synthesize imageView;

#define kHeight 40
#define kWidth  37
#define kBorder 2

- (id)initWithAnnotation:(id )annotation reuseIdentifier:(NSString *)reuseIdentifier
{
	iCodeBlogAnnotation* myAnnotation = (iCodeBlogAnnotation*)annotation;

	if([myAnnotation annotationType] == iCodeBlogAnnotationTypeApple)
	{
		self = [super initWithAnnotation:myAnnotation reuseIdentifier:reuseIdentifier];
		self.frame = CGRectMake(0, 0, kWidth, kHeight);
		self.backgroundColor = [UIColor clearColor];

		imageView = [[UIImageView alloc] initWithImage:[UIImage imageNamed:@"AppleMarker.png"]];
		imageView.frame = CGRectMake(kBorder, kBorder, kWidth - 2 * kBorder, kWidth - 2 * kBorder);
		[self addSubview:imageView];
	}

	else if([myAnnotation annotationType] == iCodeBlogAnnotationTypeEDU)
	{
		self = [super initWithAnnotation:myAnnotation reuseIdentifier:reuseIdentifier];
		self.frame = CGRectMake(0, 0, kWidth, kHeight);
		self.backgroundColor = [UIColor clearColor];

		imageView = [[UIImageView alloc] initWithImage:[UIImage imageNamed:@"SchoolMarker.png"]];
		imageView.frame = CGRectMake(kBorder, kBorder, kWidth - 2 * kBorder, kWidth - 2 * kBorder);
		[self addSubview:imageView];
	}

	else if([myAnnotation annotationType] == iCodeBlogAnnotationTypeTaco)
	{
		self = [super initWithAnnotation:myAnnotation reuseIdentifier:reuseIdentifier];
		self.frame = CGRectMake(0, 0, kWidth, kHeight);
		self.backgroundColor = [UIColor clearColor];

		imageView = [[UIImageView alloc] initWithImage:[UIImage imageNamed:@"TacosMarker.png"]];
		imageView.frame = CGRectMake(kBorder, kBorder, kWidth - 2 * kBorder, kWidth - 2 * kBorder);
		[self addSubview:imageView];
	}

	[imageView setContentMode:UIViewContentModeScaleAspectFill];

	return self;
}

@end

Introduction to MapKit on iPhone OS 3.031

Introduction to MapKit on iPhone OS 3.032

iCodeBlogMapViewController.m

-(void)loadOurAnnotations
{
	CLLocationCoordinate2D workingCoordinate;

	workingCoordinate.latitude = 40.763856;
	workingCoordinate.longitude = -73.973034;
	iCodeBlogAnnotation *appleStore1 = [[iCodeBlogAnnotation alloc] initWithCoordinate:workingCoordinate];
	[appleStore1 setTitle:@"Apple Store 5th Ave."];
	[appleStore1 setSubtitle:@"Apple's Flagship Store"];
	[appleStore1 setAnnotationType:iCodeBlogAnnotationTypeApple];

	[mapView addAnnotation:appleStore1];

	workingCoordinate.latitude = 51.514298;
	workingCoordinate.longitude = -0.141949;
	iCodeBlogAnnotation *appleStore2 = [[iCodeBlogAnnotation alloc] initWithCoordinate:workingCoordinate];
	[appleStore2 setTitle:@"Apple Store St. Regent"];
	[appleStore2 setSubtitle:@"London England"];
	[appleStore2 setAnnotationType:iCodeBlogAnnotationTypeApple];

	[mapView addAnnotation:appleStore2];

	workingCoordinate.latitude = 35.672284;
	workingCoordinate.longitude = 139.765702;
	iCodeBlogAnnotation *appleStore3 = [[iCodeBlogAnnotation alloc] initWithCoordinate:workingCoordinate];
	[appleStore3 setTitle:@"Apple Store Giza"];
	[appleStore3 setSubtitle:@"Tokyo, Japan"];
	[appleStore3 setAnnotationType:iCodeBlogAnnotationTypeApple];

	[mapView addAnnotation:appleStore3];

	workingCoordinate.latitude = 37.331741;
	workingCoordinate.longitude = -122.030564;
	iCodeBlogAnnotation *appleStore4 = [[iCodeBlogAnnotation alloc] initWithCoordinate:workingCoordinate];
	[appleStore4 setTitle:@"Apple Headquarters"];
	[appleStore4 setSubtitle:@"The Mothership"];
	[appleStore4 setAnnotationType:iCodeBlogAnnotationTypeApple];

	[mapView addAnnotation:appleStore4];

	workingCoordinate.latitude = 41.894518;
	workingCoordinate.longitude = -87.624005;
	iCodeBlogAnnotation *appleStore5 = [[iCodeBlogAnnotation alloc] initWithCoordinate:workingCoordinate];
	[appleStore5 setTitle:@"Apple Store Michigan Ave."];
	[appleStore5 setSubtitle:@"Chicago, IL"];
	[appleStore5 setAnnotationType:iCodeBlogAnnotationTypeApple];

	[mapView addAnnotation:appleStore5];

	workingCoordinate.latitude = 32.264977;
	workingCoordinate.longitude = -110.944011;
	iCodeBlogAnnotation *tacoShop1 = [[iCodeBlogAnnotation alloc] initWithCoordinate:workingCoordinate];
	[tacoShop1 setTitle:@"Nico's Taco Shop"];
	[tacoShop1 setSubtitle:@"Tucson, AZ"];
	[tacoShop1 setAnnotationType:iCodeBlogAnnotationTypeTaco];

	[mapView addAnnotation:tacoShop1];

	workingCoordinate.latitude = 32.743242;
	workingCoordinate.longitude = -117.181451;
	iCodeBlogAnnotation *tacoShop2 = [[iCodeBlogAnnotation alloc] initWithCoordinate:workingCoordinate];
	[tacoShop2 setTitle:@"Lucha Libre Gourmet"];
	[tacoShop2 setSubtitle:@"San Diego, CA"];
	[tacoShop2 setAnnotationType:iCodeBlogAnnotationTypeTaco];

	[mapView addAnnotation:tacoShop2];

	workingCoordinate.latitude = 32.594987;
	workingCoordinate.longitude = -117.060936;
	iCodeBlogAnnotation *tacoShop3 = [[iCodeBlogAnnotation alloc] initWithCoordinate:workingCoordinate];
	[tacoShop3 setTitle:@"El Ranchero Taco Shop"];
	[tacoShop3 setSubtitle:@"Rocky Pointe, Mexico"];
	[tacoShop3 setAnnotationType:iCodeBlogAnnotationTypeTaco];

	[mapView addAnnotation:tacoShop3];

	workingCoordinate.latitude = -34.594859;
	workingCoordinate.longitude = -58.384336;
	iCodeBlogAnnotation *tacoShop4 = [[iCodeBlogAnnotation alloc] initWithCoordinate:workingCoordinate];
	[tacoShop4 setTitle:@"Taco Tequila Sangria S.A."];
	[tacoShop4 setSubtitle:@"Buneos Aires, Argentina"];
	[tacoShop4 setAnnotationType:iCodeBlogAnnotationTypeTaco];

	[mapView addAnnotation:tacoShop4];

	workingCoordinate.latitude = 38.240550;
	workingCoordinate.longitude = -0.526509;
	iCodeBlogAnnotation *tacoShop5 = [[iCodeBlogAnnotation alloc] initWithCoordinate:workingCoordinate];
	[tacoShop5 setTitle:@"Albertsma Taco"];
	[tacoShop5 setSubtitle:@"Gran Alacant, Spain"];
	[tacoShop5 setAnnotationType:iCodeBlogAnnotationTypeTaco];

	[mapView addAnnotation:tacoShop5];

	workingCoordinate.latitude = 33.419490;
	workingCoordinate.longitude = -111.930563;
	iCodeBlogAnnotation *school1 = [[iCodeBlogAnnotation alloc] initWithCoordinate:workingCoordinate];
	[school1 setTitle:@"Arizona State University"];
	[school1 setSubtitle:@"Go Sun Devils"];
	[school1 setAnnotationType:iCodeBlogAnnotationTypeEDU];

	[mapView addAnnotation:school1];

	workingCoordinate.latitude = 35.087537;
	workingCoordinate.longitude = -106.618184;
	iCodeBlogAnnotation *school2 = [[iCodeBlogAnnotation alloc] initWithCoordinate:workingCoordinate];
	[school2 setTitle:@"University of New Mexico"];
	[school2 setSubtitle:@"Go Lobos"];
	[school2 setAnnotationType:iCodeBlogAnnotationTypeEDU];

	[mapView addAnnotation:school2];

	workingCoordinate.latitude = 40.730838;
	workingCoordinate.longitude = -73.997498;
	iCodeBlogAnnotation *school3 = [[iCodeBlogAnnotation alloc] initWithCoordinate:workingCoordinate];
	[school3 setTitle:@"New York University"];
	[school3 setSubtitle:@"New York, NY"];
	[school3 setAnnotationType:iCodeBlogAnnotationTypeEDU];

	[mapView addAnnotation:school3];

	workingCoordinate.latitude = 51.753523;
	workingCoordinate.longitude = -1.253171;
	iCodeBlogAnnotation *school4 = [[iCodeBlogAnnotation alloc] initWithCoordinate:workingCoordinate];
	[school4 setTitle:@"Oxford University"];
	[school4 setSubtitle:@"Oxford, England"];
	[school4 setAnnotationType:iCodeBlogAnnotationTypeEDU];

	[mapView addAnnotation:school4];

	workingCoordinate.latitude = 22.131982;
	workingCoordinate.longitude = 82.142302;
	iCodeBlogAnnotation *school5 = [[iCodeBlogAnnotation alloc] initWithCoordinate:workingCoordinate];
	[school5 setTitle:@"India Institute of Technology"];
	[school5 setSubtitle:@"Delhi, India"];
	[school5 setAnnotationType:iCodeBlogAnnotationTypeEDU];

	[mapView addAnnotation:school5];
}

Introduction to MapKit on iPhone OS 3.033

iCodeblogMapViewController.m

- (iCodeBlogAnnotationView *)mapView:(MKMapView *)mapView viewForAnnotation:(id )annotation
{
	iCodeBlogAnnotationView *annotationView = nil;

	// determine the type of annotation, and produce the correct type of annotation view for it.
	iCodeBlogAnnotation* myAnnotation = (iCodeBlogAnnotation *)annotation;

	if(myAnnotation.annotationType == iCodeBlogAnnotationTypeApple)
	{
		NSString* identifier = @"Apple";
		iCodeBlogAnnotationView *newAnnotationView = (iCodeBlogAnnotationView *)[self.mapView dequeueReusableAnnotationViewWithIdentifier:identifier];

		if(nil == newAnnotationView)
		{
			newAnnotationView = [[[iCodeBlogAnnotationView alloc] initWithAnnotation:myAnnotation reuseIdentifier:identifier] autorelease];
		}

		annotationView = newAnnotationView;
	}
	else if(myAnnotation.annotationType == iCodeBlogAnnotationTypeEDU)
	{
		NSString* identifier = @"School";

		iCodeBlogAnnotationView *newAnnotationView = (iCodeBlogAnnotationView *)[self.mapView dequeueReusableAnnotationViewWithIdentifier:identifier];

		if(nil == newAnnotationView)
		{
			newAnnotationView = [[[iCodeBlogAnnotationView alloc] initWithAnnotation:myAnnotation reuseIdentifier:identifier] autorelease];
		}

		annotationView = newAnnotationView;
	}
	else if(myAnnotation.annotationType == iCodeBlogAnnotationTypeTaco)
	{
		NSString* identifier = @"Taco";

		iCodeBlogAnnotationView *newAnnotationView = (iCodeBlogAnnotationView *)[self.mapView dequeueReusableAnnotationViewWithIdentifier:identifier];

		if(nil == newAnnotationView)
		{
			newAnnotationView = [[[iCodeBlogAnnotationView alloc] initWithAnnotation:myAnnotation reuseIdentifier:identifier] autorelease];
		}

		annotationView = newAnnotationView;
	}

	[annotationView setEnabled:YES];
	[annotationView setCanShowCallout:YES];

	return annotationView;
}

Introduction to MapKit on iPhone OS 3.034

Introduction to MapKit on iPhone OS 3.035

iCodeBlogMapViewController.m

- (NSInteger)numberOfSectionsInTableView:(UITableView *)tableView
{
    return 3;
}

Introduction to MapKit on iPhone OS 3.036

iCodeBlogMapViewController.m

- (NSString *)tableView:(UITableView *)tableView titleForHeaderInSection:(NSInteger)section
{
	if(section == iCodeBlogAnnotationTypeApple)
	{
		return @"Apple Markers";
	}

	else if(section == iCodeBlogAnnotationTypeEDU)
	{
		return @"Schools";
	}

	else if(section == iCodeBlogAnnotationTypeTaco)
	{
		return @"Taco Shops";
	}

	return nil;
}

Introduction to MapKit on iPhone OS 3.037

iCodeBlogMapViewController.m

- (NSInteger)tableView:(UITableView *)tableView numberOfRowsInSection:(NSInteger)section
{
	return 5;
}

Introduction to MapKit on iPhone OS 3.038

Introduction to MapKit on iPhone OS 3.039

iCodeBlogMapViewController.m

- (UITableViewCell *)tableView:(UITableView *)tableView cellForRowAtIndexPath:(NSIndexPath *)indexPath
{
    static NSString *CellIdentifier = @"Cell";

    UITableViewCell *cell = [tableView dequeueReusableCellWithIdentifier:CellIdentifier];

	if (cell == nil)
	{
        cell = [[[UITableViewCell alloc] initWithStyle:UITableViewCellStyleDefault reuseIdentifier:CellIdentifier] autorelease];
    }

	NSMutableArray *annotations = [[NSMutableArray alloc] init];

	if(indexPath.section == 0)
	{
		for(iCodeBlogAnnotation *annotation in [mapView annotations])
		{
			if([annotation annotationType] == iCodeBlogAnnotationTypeApple)
			{
				[annotations addObject:annotation];
			}
		}

		cell.textLabel.text = [[annotations objectAtIndex:indexPath.row] title];
	}

	else if(indexPath.section == 1)
	{
		for(iCodeBlogAnnotation *annotation in [mapView annotations])
		{
			if([annotation annotationType] == iCodeBlogAnnotationTypeEDU)
			{
				[annotations addObject:annotation];
			}
		}

		cell.textLabel.text = [[annotations objectAtIndex:indexPath.row] title];
	}

	else if(indexPath.section == 2)
	{
		for(iCodeBlogAnnotation *annotation in [mapView annotations])
		{
			if([annotation annotationType] == iCodeBlogAnnotationTypeTaco)
			{
				[annotations addObject:annotation];
			}
		}

		cell.textLabel.text = [[annotations objectAtIndex:indexPath.row] title];
	}

    return cell;
}

Introduction to MapKit on iPhone OS 3.040

Introduction to MapKit on iPhone OS 3.041

iCodeBlogMapViewController.m

- (void)tableView:(UITableView *)tableView didSelectRowAtIndexPath:(NSIndexPath *)indexPath
{
	for(iCodeBlogAnnotation *annotation in [mapView annotations])
	{
		if([[[[tableView cellForRowAtIndexPath:indexPath] textLabel] text] isEqualToString:[annotation title]])
		{
			[mapView setRegion:MKCoordinateRegionMake([annotation coordinate], MKCoordinateSpanMake(.01, .01)) animated:YES];
		}
	}
}
